Prepare your compressed-air line with an air source processor designed to separate oil and water.
-
Reusable filter element: The brass element provides filtering performance and is designed for reuse and longer service life.
-
Operating specs: Both sets operate at 0–125 PSI, with a 145 psi maximum supply pressure; at 90 psi, AC2010-2 flows 18 SCFM (500 L/min) and AC3010-3 flows 60 SCFM (1,700 L/min).
-

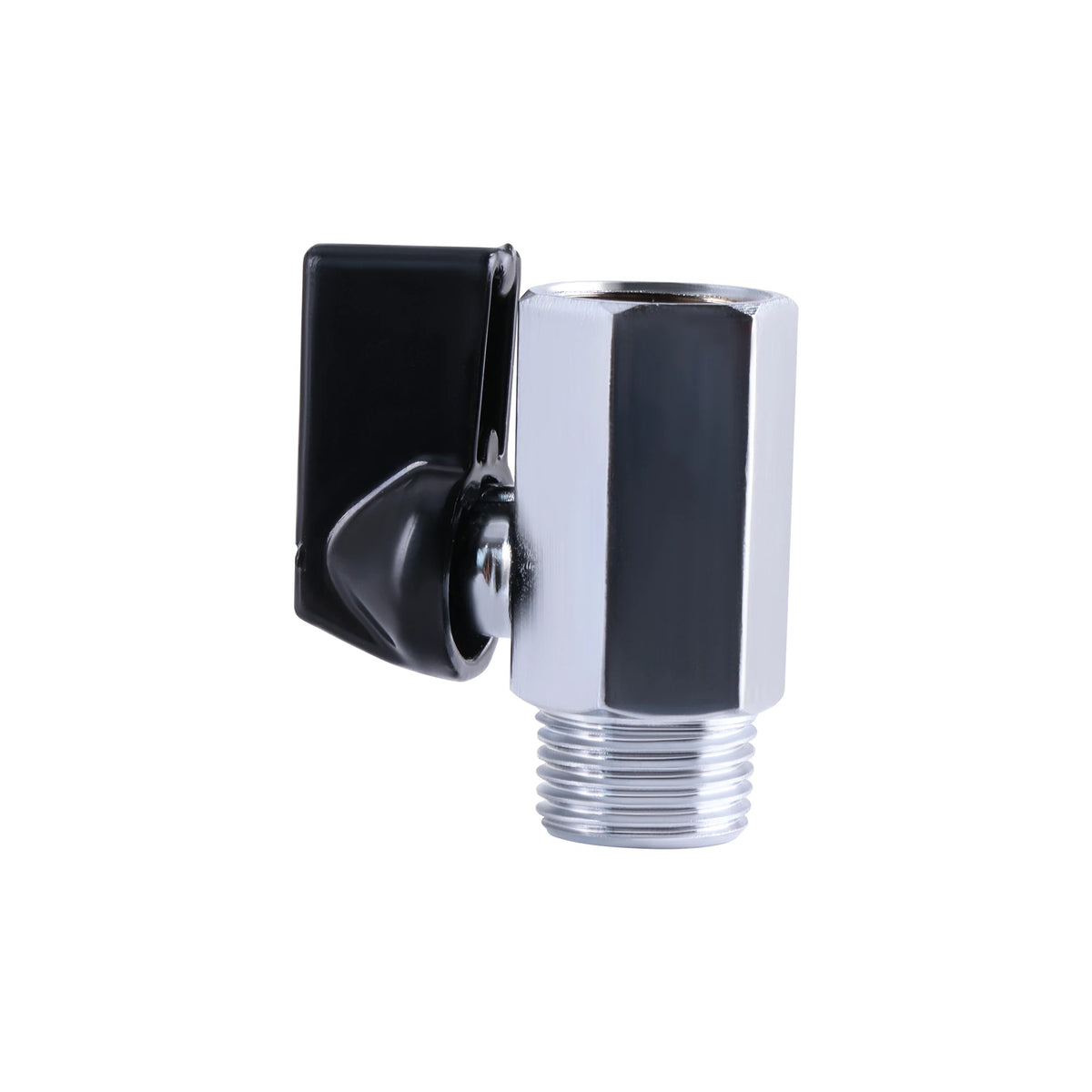

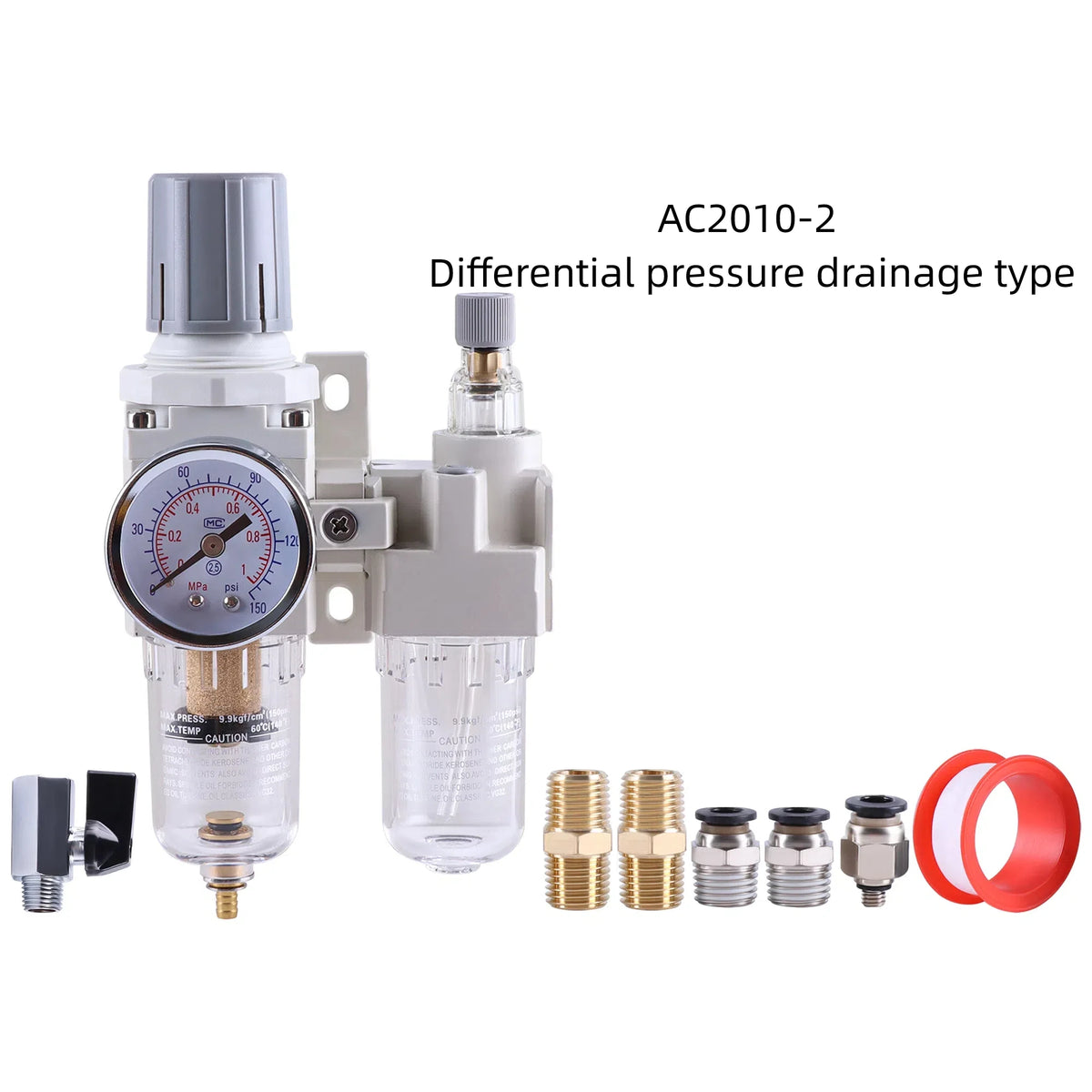

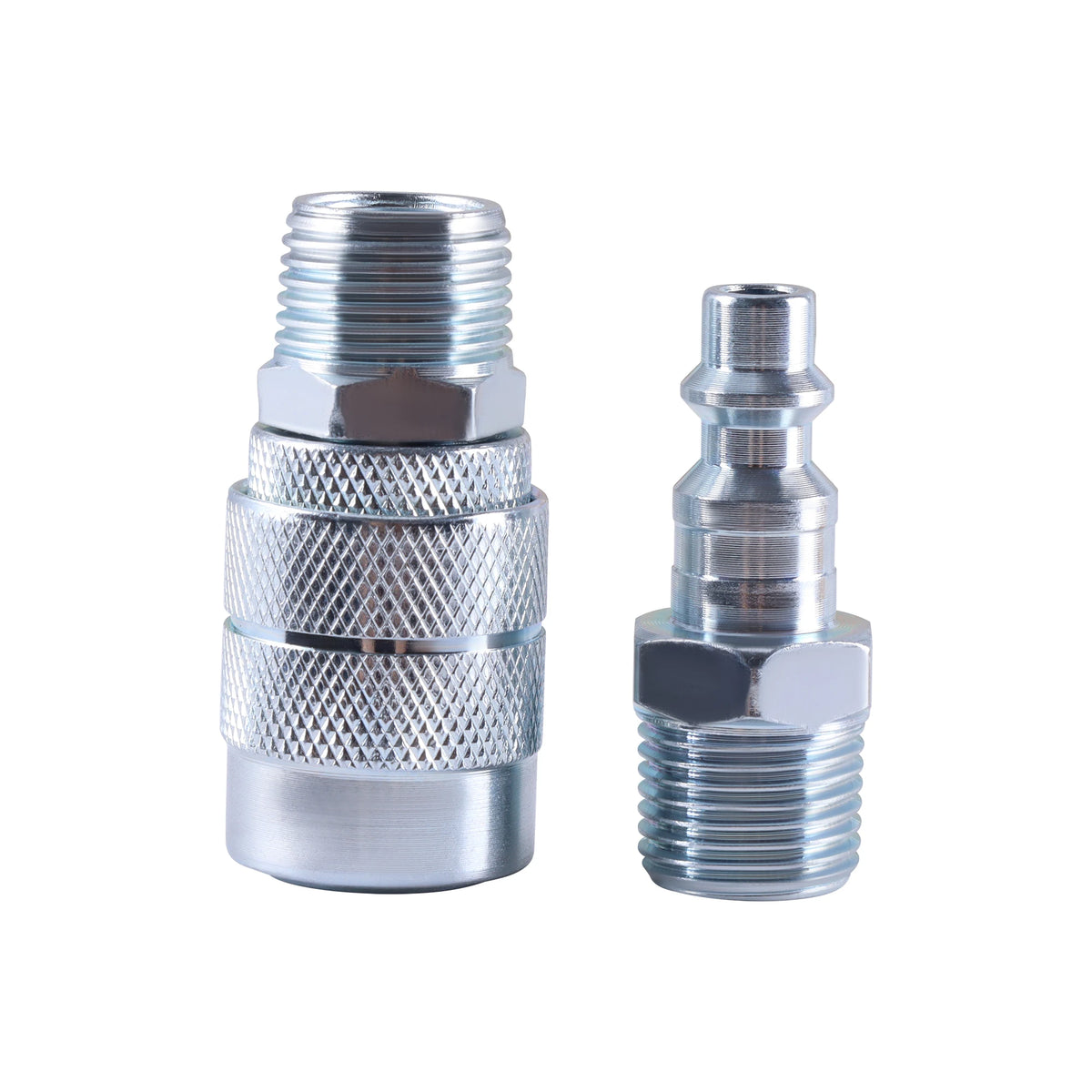

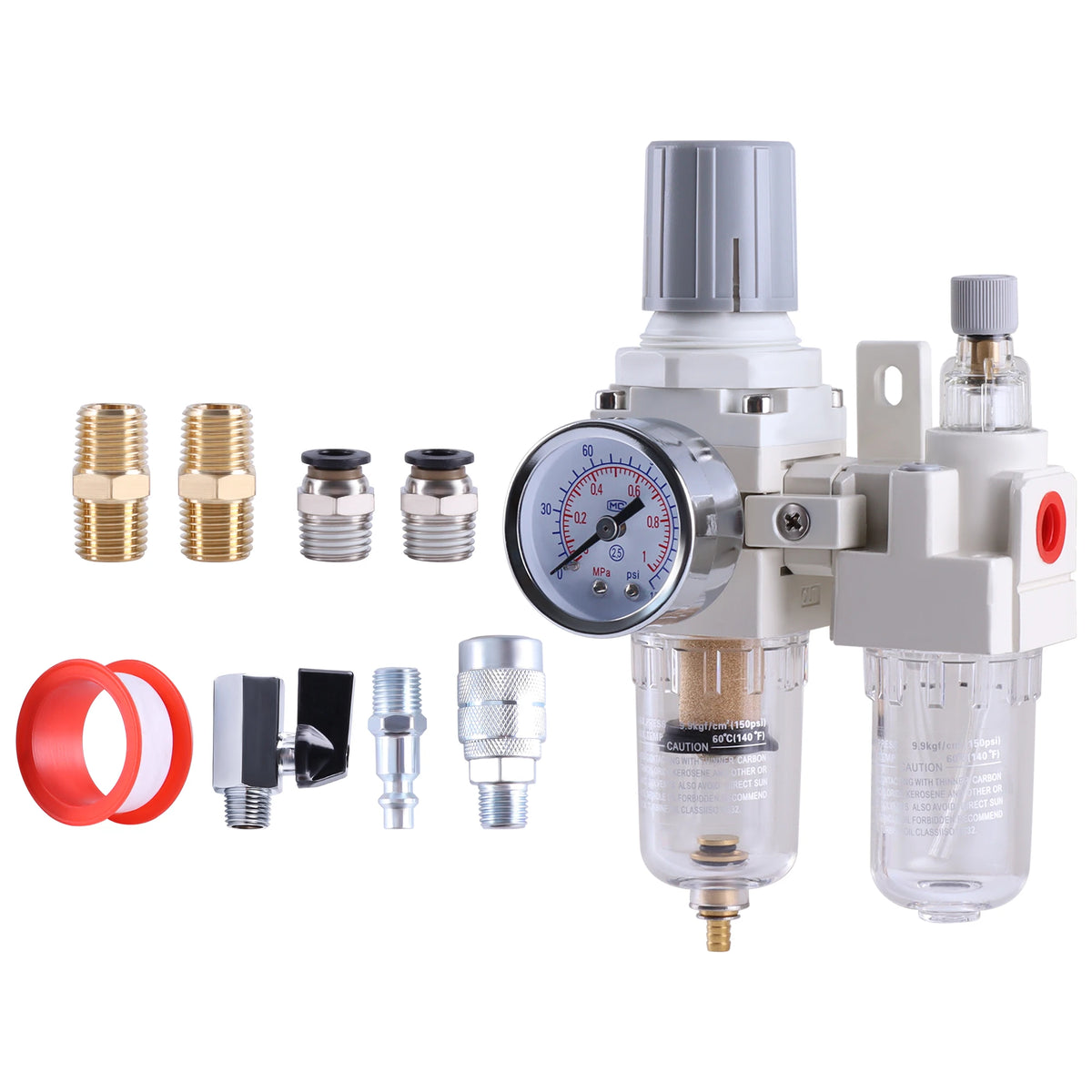

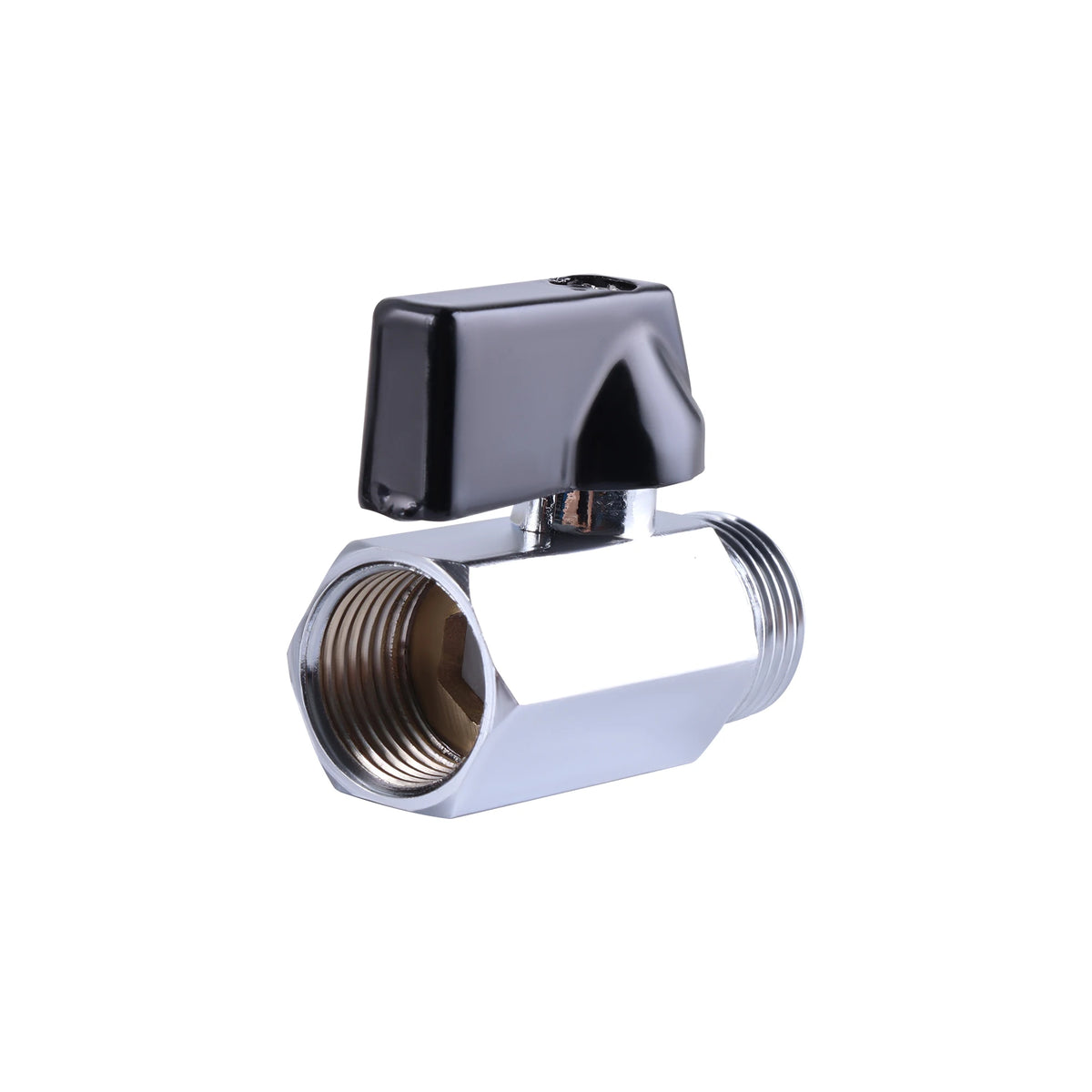

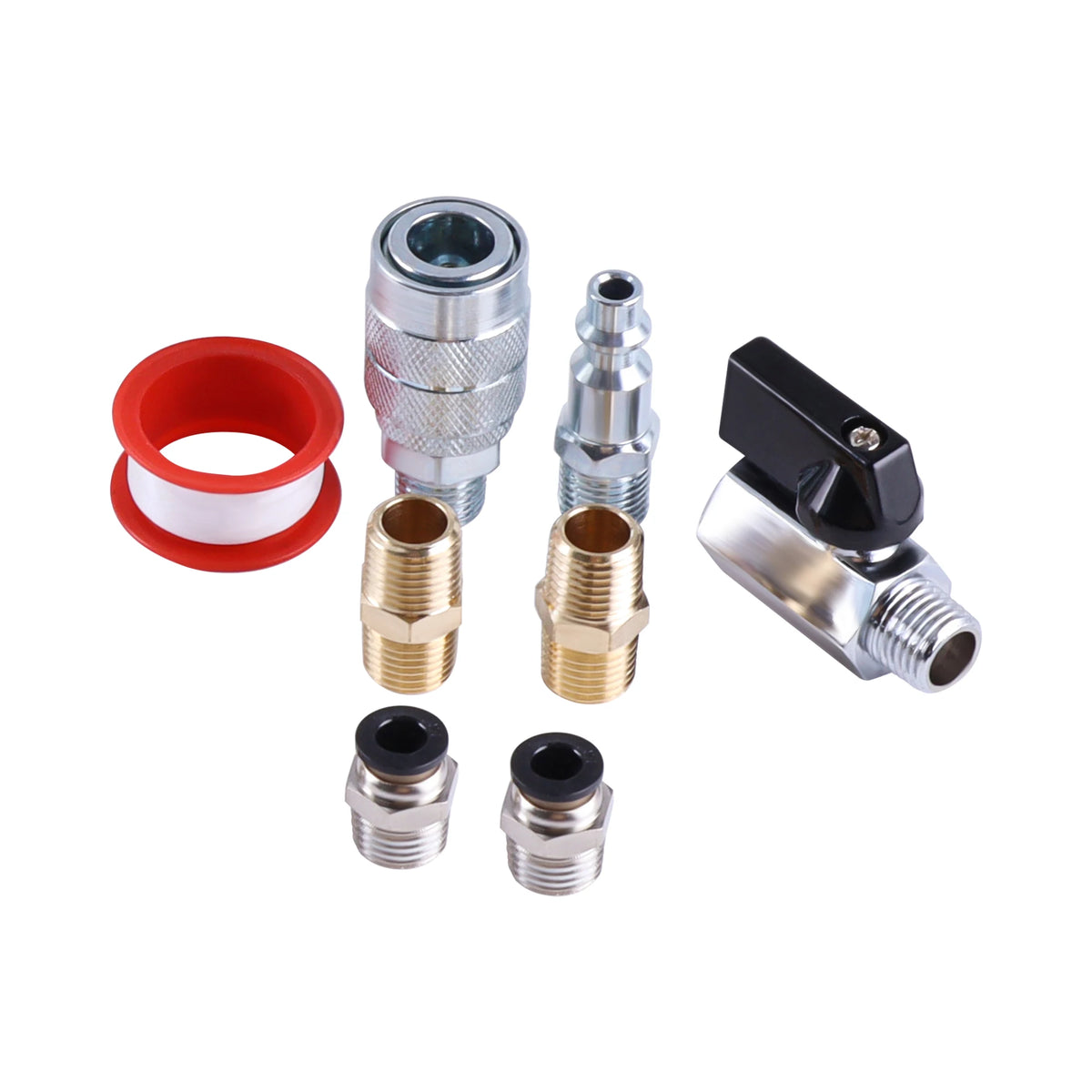

AC2010-2 set: Includes a semi-auto drain, polycarbonate bowl, 0–150 gauge and bracket, nickel-plated iron air plug and coupler, two 1/4-inch brass hex nipples, mini ball valve, two PC-1/4-1/4NPT male fittings, and Teflon tape.
-

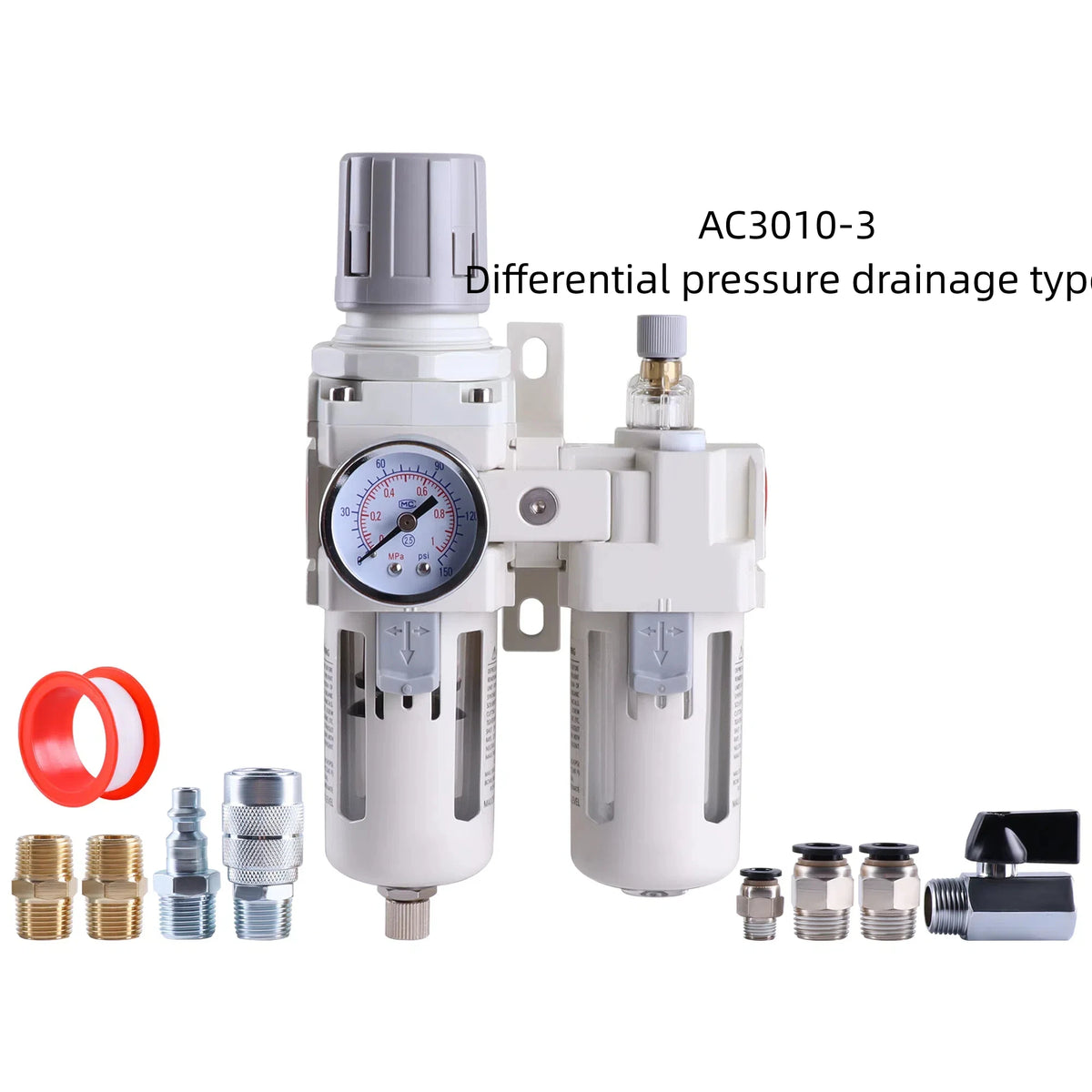

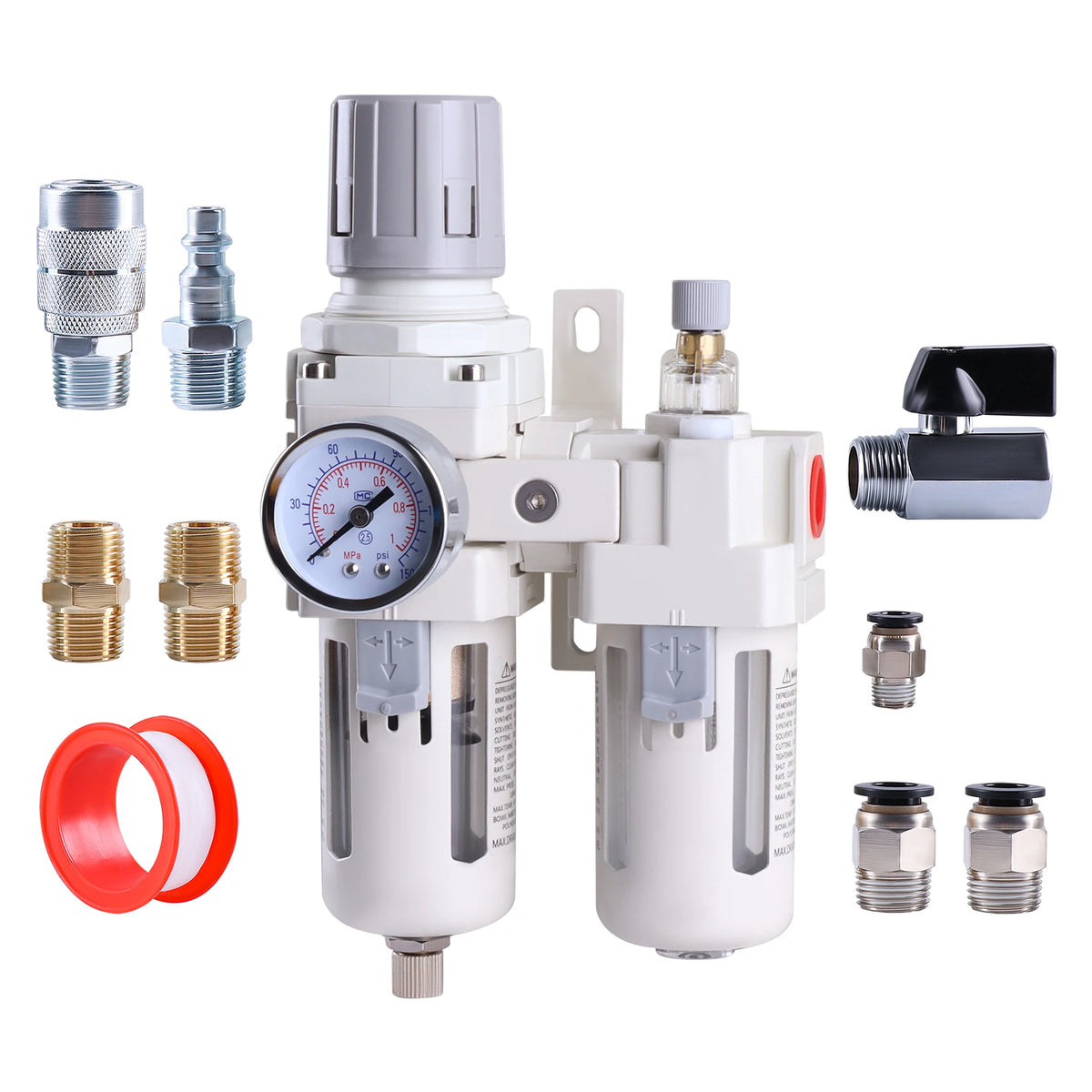

AC3010-3 set: Includes a semi-auto drain, guarded polycarbonate bowl, 0–150 gauge and bracket, nickel-plated iron air plug and coupler, two 3/8-inch brass hex nipples, mini ball valve, two PC-3/8-3/8NPT male fittings, two PC6-01 threaded joints, and Teflon tape.
